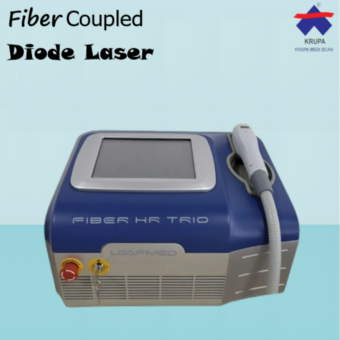

Fiber HR is latest 810nm fiber coupled diode laser for hair removal and more applications, compared with normal diode laser, Fiber HR put laser generator in machine inside not in hand piece. So energy and heat transfer are released by fiber. Normal diode laser’s hand piece is heavy, expensive but frail, but Fiber HR’s is light and strong. So its hand piece can reach much longer lifespan 50 million shots, is durable with nothing consumable.
Latest designed screen has three treatment mode, fast, classic and free setting mode, which meet more types of users’ operation by professional and full parameters. Fiber HR will add two more spot sizes of 4mm and 60mm for more applications like pigment and pain relief treatment etc
| Model | Fiber HR |
| Laser Type | Fiber Coupled Diode Laser |
| Laser Wavelength | 810nm |
| Laser Power | 640W |
| Pulse Width | 5-800ms |
| Energy | 1-100J/cm2 |
| Spot Size | 12 x 12 mm |
| Frequency | 1-10Hz |
| Operation Mode | Fast, Classical,Free Setting |
| Cooling Temperature | ≤5℃ |
| Dimension | 650 x 430 x 315mm (L X W X H) |
| Net Weight | 22 kg |
| Input Power Supply | 110/220V 50Hz |
The light generated by multiple diode laser are coupled into a single-core multimode fiber by micro lens array, in order to deliver light to the target place.
Features：Low damage rate, Uniform energy distribution, Long lifespan, Easy maintenance.
Normal diode laser mostly are Vertical Laser Stack with a number of diode bars, which are arranged in a form of stack. The laser chip are welded on heat sinks to deliver high output energy.
Features: High damage rate, Low life span, High requirement for maintenance.
Working Principle
Durable Handpiece & Long lifespan
Vertical laser stack has narrow cooling channel, high heat flux but low heat capacity, so it easily has thermal damage like bars’ burning caused by water shortage, over heat or over current etc. And it easily show cavity surface damage caused by moisture condensation, dusk and channel blockage. So usually normal diode laser’s working temperature should be low, need consumable like filter on time, the lifespan max. is 5 to 10 million shots with very high cost for future use. But Fiber HR of fiber coupled diode laser solve all the above common technology defect, it can work in high temperature even 45℃ and moisture environment, protect core laser generator never happen problem caused by thermal damage, so prolong the lifespan of hand piece to 50 million shots and two years’ guarantee. No any consumable like filter at all, need not change high hand piece every year, most economical diode laser machine in the market.
Light Handpiece & contact Cooling
No laser generator in hand piece, so need not worry the damage to high hand piece caused by not careful use. The hand piece is much lighter and more comfortable for lady operator and long term operation. Sapphire contact cooling protect epidermis well and ensure safe and comfortable treatment though under high energy use. Cooling temperature keep 0℃ to 5℃.
Uniform Energy Distribution
Fiber coupled diode laser is designed with a uniform energy distribution at a small divergence angle for more gentle and effective depilation.
Multiple Treatment Mode
Repeat mode use relatively lower energy but high frequency 10HZ, sliding on skin reach fast operation especially for big skin area, accumulated energy by more times's sliding ensure treatment effect but comfortable for epidermis.
Stamp mode is suitable for samll area treatment, shortest interval can be 0.8s, safe and efficient.
Classical mode give user ready scientific parameters based on different skin types, hair color and hair types, refined and convenient operation.
Custom mode let professional user choose experienced and full parameters like pulse width etc. High energy range 100J meet all the patient's need. Saving function save the habitual parameters for direct use after turning on machine.
